In SharePoint 2010, you now can use LINQ syntax to fetch items from your lists instead of using the "traditional" approach of CAML queries. (Including SPSiteDataQuery and SPQuery objects)

In this article, I will give you a brief introduction to how you can get started using LINQ queries in SharePoint, also known as LINQ to SharePoint.

Basics of LINQ?

As a prerequisite to this article, I’m going to imply that you know what LINQ is and how to write basic LINQ queries in any .NET application already. I’m not going to dive into the details about LINQ or the syntax itself here – please see MSDN for that!

LINQ to SharePoint!

In order to work with LINQ in SharePoint 2010, we need to use a tool called SPMetal.exe which resides in the 14bin folder. This tool is used to generate some entity classes, which Visual Studio 2010 can use to get IntelliSense, and allows for LINQ-based queries to be performed on your lists.

Noteworthy:

  • LINQ to SharePoint queries are translated to proper CAML queries
  • CAML queries are, in turn, later translated to SQL queries

SPMetal.exe

Using the tool called SPMetal, we generate our entity classes needed to perform these object-oriented queries toward our SharePoint server.

These are the required steps to get hooked up:

Launch a cmd-window and navigate to C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\bin

Navigating to the SharePoint binary directory in a SharePoint server environment.

Run the following command to utilize the SPMetal.exe tool with the following syntax:

SPMetal.exe /web:http://yoursite /code:C:\YourEntityFile.cs

Example:

Run the SPMetal.exe command

Now navigate to C:\ (or wherever you chose to output your file) and make sure the file has been generated:

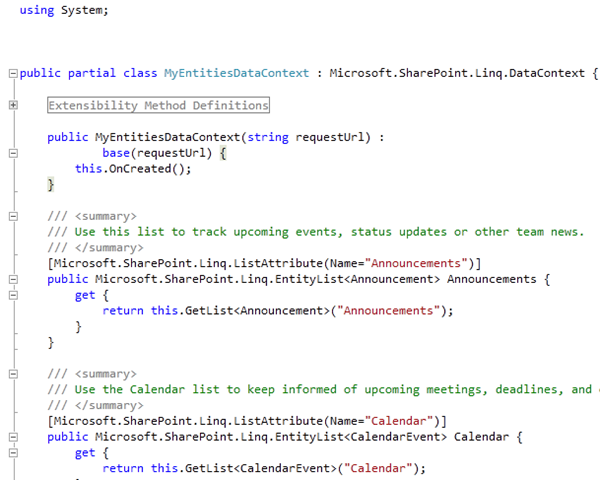

Open up the file and take a look at the content that SPMetal now has provided us with:

Verifying that SPMetal has created the files we need.


Note that the class name is now MyEntitiesDataContext. It’s based on the name you specify as your code file in the SPMetal.exe command-line tool. If you were to use /code:C:\Awesome.cs instead, it would generate a class called AwesomeDataContext.

With that done – all we need to do is import it to one of our projects and use it!

Visual Studio 2010 – Let’s create a sample Web Part that utilizes LINQ to SharePoint

In this sample, I will create a simple Web Part that will use LINQ to SharePoint syntax to fetch some information from the Announcements list. A basic sample I use in my training classes as well, and should be reasonably easy to grasp!

  1. Create a new project (I’m going to create a new Visual Web Part project)
  2. Import your DataContext-file by choosing your Project -> Add -> Existing Item:
  3. Specify your file (mine is called MyEntities.cs):
  4. Make sure it’s properly placed in your project structure – then we’re good to go:
Example project structure for a LINQ to SharePoint project, generated using SPMetal

Thus far, we have created an entity file using SPMetal.exe, and now we have successfully imported it into our project.

Add proper references

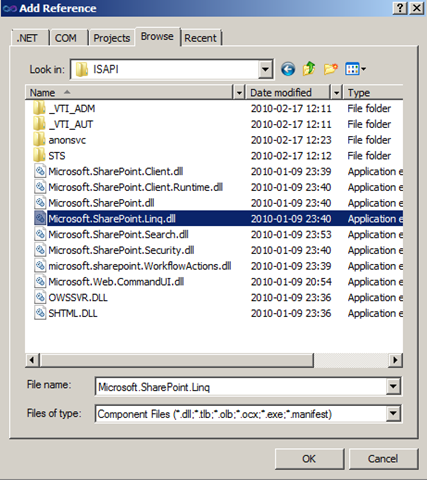

Now to use LINQ to SharePoint, you also need to reference the Microsoft.SharePoint.Linq assembly. Point to references, right-click and choose "Add Reference" and select the Microsoft.SharePoint.Linq.dll file:

Referencing the Microsoft.SharePoint.Linq.dll assembly to allow working with LINQ to SharePoint

In your code, reference the assemblies:

Ready to code?

What you should’ve done up until now is this:

  1. Generate your entities using the SPMetal.exe tool
  2. Reference the newly created file from your SharePoint project
  3. Make sure you’re using the proper references for System.Linq and Microsoft.SharePoint.Linq
  4. Be ready to code :-)

Code!

In my example, I will have a Visual Web Part that will use LINQ to SharePoint to fetch all Announcements from my Announcement-list and work with those results. If you want to see the entire project, look at the bottom of this article, where you can download it.

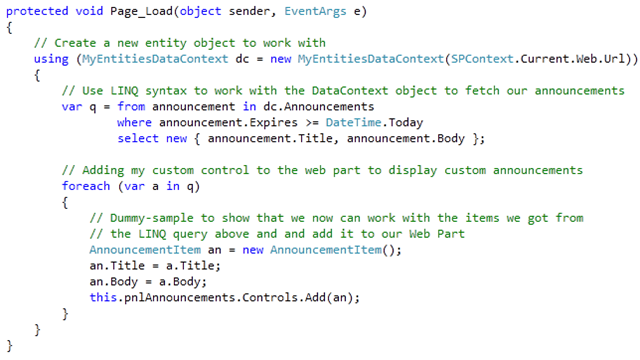

Example of using LINQ to SharePoint to retrieve announcements from a SharePoint site.

IntelliSense!

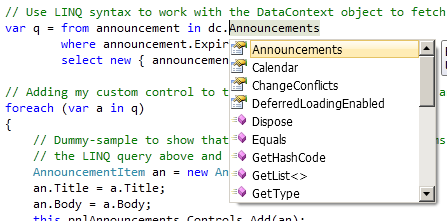

While you code your queries using LINQ to SharePoint, you will now have access to IntelliSense, which you did not have with CAML queries:

Showing the IntelliSense dialog when coding with LINQ to SharePoint.

I’m going to leave it at that – very (very) easy to get started with LINQ to SharePoint, and all you really need to know is to start using the SPMetal tool to generate your entity classes and hook’em up with Visual Studio to start coding.

Summary

As you can see, there are not a lot of things you need to do in order to work with LINQ in your SharePoint applications with your SharePoint data.

I’ve been pinged plenty of times on how you can get started with this, and there you have it. More in-depth articles to come later – this is just to get your wagon rolling!

Update: The download for this project no longer exist. It has been deprecated.

Enjoy!
