Author: Tobias Zimmergren
http://www.zimmergren.net | http://www.tozit.com | [@zimmergren](http://www.twitter.com/zimmergren)


If you’ve been playing around with SharePoint 2010 lately, you’ve most likely noticed a new concept introduced as "Sandbox Solutions".

With sandboxed solutions (read more about them here: http://msdn.microsoft.com/en-us/library/ee536577(office.14).aspx) comes the possibility to scope your solutions to Site Collection (into the new Solution gallery).

A question I often get is how you can validate those solutions automatically, and therefore I’ll lay out the basic principles of creating a Sandbox Solution Validator which now is part of the SharePoint object model.

What will happen?

If you have a custom Solution Validator hooked up with your farm, a custom error page will be displayed, and the solution will not be activated.

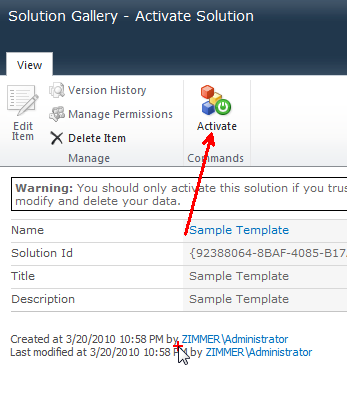

If you try to activate the solution:

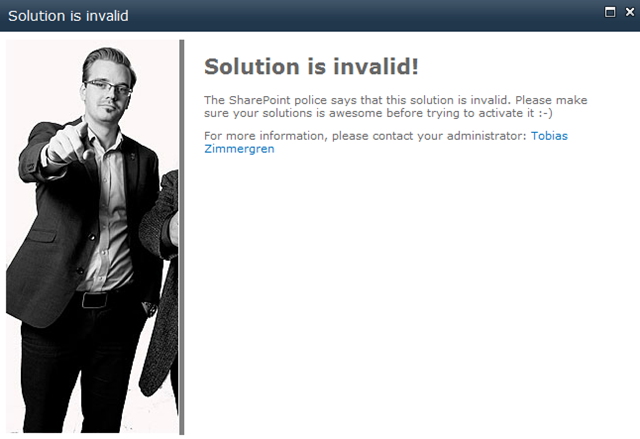

Our custom Solution Validator kicks in and in this case disallows the solution and displays the following custom error page:

So, let’s get down to business!

Building a Solution Validator

What we need:

  1. A Solution Validator
  2. A feature to install/uninstall the validator in our Farm

1. Let’s begin by creating our custom Solution Validator class

Essentially this is just a simple class, inheriting from SPSolutionValidator which gives us some methods we can override. Check this example out:

using System.Runtime.InteropServices; using Microsoft.SharePoint.UserCode; using Microsoft.SharePoint.Administration; namespace

Zimmergren._2010.SolutionValidation {     [Guid("29e3702d-5d8c-45ad-b1aa-a2087b9e8585")]     public class ZimmergrenSolutionValidator : SPSolutionValidator     {         private const string myAwesomeValidator = "ZimmergrenSolutionValidator";                 // Not used, but needed for deployment and compilation         public ZimmergrenSolutionValidator(){}

        public ZimmergrenSolutionValidator(SPUserCodeService sandboxService) :                    base(myAwesomeValidator, sandboxService)         {             // Use this to define a unique identification number             // You may need this when updating/modifying the validator             Signature = 666;         }

        public override void ValidateSolution(SPSolutionValidationProperties properties)         {             base.ValidateSolution(properties);

            // Set to false if you want invalidate the solution             // Set to true (default) if you want to validate             properties.Valid = false; // Being evil and invalidates all solutions for test!

            // Then specify an errorpage to display             // Tip: Create a nice application page for this..             properties.ValidationErrorUrl =                       "/_layouts/Zimmergren.2010.SolutionValidation/InvalidSolution.aspx";         }     } }

In my sample I used an override of the ValidateSolution method and invalidated the solution to show you that it actually works.

The two most suitable methods for overriding are:

  1. ValidateSolution
  2. ValidateAssembly

2. We need to make easy installable (Read: Feature)

In order for our awesome solution validator (which in this case is very slim and don’t really do any real validation, rather invalidates all solutions) – we need to let the SPUserCode service (Sandboxed Solution Service in layman terms) know that we want to hook it up.

This can easily be done using a Farm feature, using PowerShell or just plain’ol Object Model code in any application.

My approach is of course to make it as easy as possible for the end-user and administrator, so I’ll create a Farm Feature with the following snippets of code:

[Guid("d0d086ec-2bef-45e8-be8b-a67895c1bd3b")] public class ZimmergrenSolutionValidatorEventReceiver : SPFeatureReceiver {     public override void FeatureActivated(SPFeatureReceiverProperties properties)     {         SPUserCodeService sandboxService = SPUserCodeService.Local;         SPSolutionValidator zimmerValidator =                 new ZimmergrenSolutionValidator(sandboxService);         sandboxService.SolutionValidators.Add(zimmerValidator);     }

    public override void FeatureDeactivating(SPFeatureReceiverProperties properties)     {         SPUserCodeService sandboxService = SPUserCodeService.Local;         Guid zimmerValidatorId =                 sandboxService.SolutionValidators["ZimmergrenSolutionValidator"].Id;         sandboxService.SolutionValidators.Remove(zimmerValidatorId);     } }

Summary and reflections

If you want to create some kind of check to automatically validate solution that are uploaded by end-users in their Solution Galleries, this is the way to do it.

Solution validators are very easy to write, and they can be installed using a few different approaches. My take is to create a farm feature, while you could still do it using powershell or in any way you want through the object model.

Good resources on Sandboxed Solutions:

  1. Deploying a Sandboxed Solution
  2. Sandboxed Solution Considerations
  3. Sandboxed Solution Architecture
