Building an ASP.NET 5 web application (.NET Core) and host it in the Heroku cloud

Tobias Zimmergren
Tobias Zimmergren
💡TIP: Check out the guidance for building sustainable Azure workloads! 🌿

This post is about how you can bring your ASP.NET 5 website (or build a new one using the asp.net Yeoman generator) up into the Heroku cloud. It's super quick, smooth and easy experience to deploy it using a third-party build pack.

Tag along though this post, and let me know in the comments what your thoughts are.

Note: If you haven't read the previous post about Building a MEAN (MongoDB, ExpressJs, Angular and Node.js) API app using TypeScript and host it with Heroku, I would suggest you check it out.

Part 1: Setup the git repository

In order to work with Heroku CLI which I'll be doing, you'll need a git repository as the base for your asp.net project.

Either git init a new repository or git clone <repo url> an existing one.

In my case I'm cloning an empty repo from my GitHub, and then I'll create the ASP.NET 5 app there, which I'll later publish to Heroku. The final code for that web app can be downloaded below.

Download: To get the full source code for my ASP.NET 5 sample project, check it out on GitHub.

Part 2: Create the ASP.NET 5 Website

I assume you've got a repository to work with at this point. For the sake of clarity, my repository is empty at this point and I'll create the contents of it as we go.

If you've got an ASP.NET 5 web site in your repo already, skip to Part 3.

Install the required tooling

If you haven't done this already, you should install the required toolings to work with the Yeoman generator for ASP.NET core.

Install bower and yeoman (yo):

npm install -g yo bower

Install the aspnet generator for yeoman:

npm install -g generator-aspnet

Generate the base for our website with Yeoman

We're using Yeoman.

If you're new to yeoman, please read more on the Yeoman website

yo aspnet

As per the aforementioned steps, we've installed the required tooling. Namely yeoman, bower and our asp.net core generator.

Create your ASP.NET basic web application:

yo aspnet

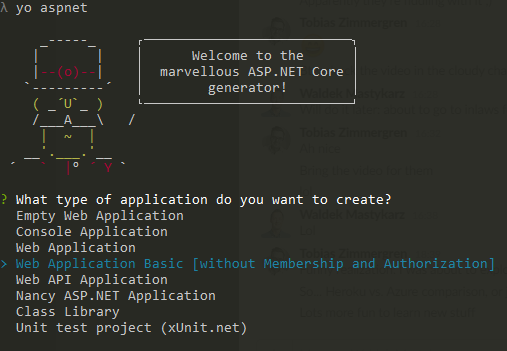

Yeoman ASP.NET Core website generation

  1. Select the Web Application Basic [without Membership and Authorization]
  2. Select Bootstrap or Semantic. I went for Semantic!
  3. Put a name to it. Mine is AspnetWithHeroku
  4. Watch the generator flow.

This process takes only a matter of seconds (possibly longer if your machine isn't awesome), and should give you something similar to this:

Created ASP.NET project successfully

Edit the generated project

I'm using Visual Studio Code to make some slight modifications, just to make sure this newly generated website is unique and we can distinguish it once we've published to Heroku.

I'm changing the header in the Index.cshtml file so the site simply looks like this:

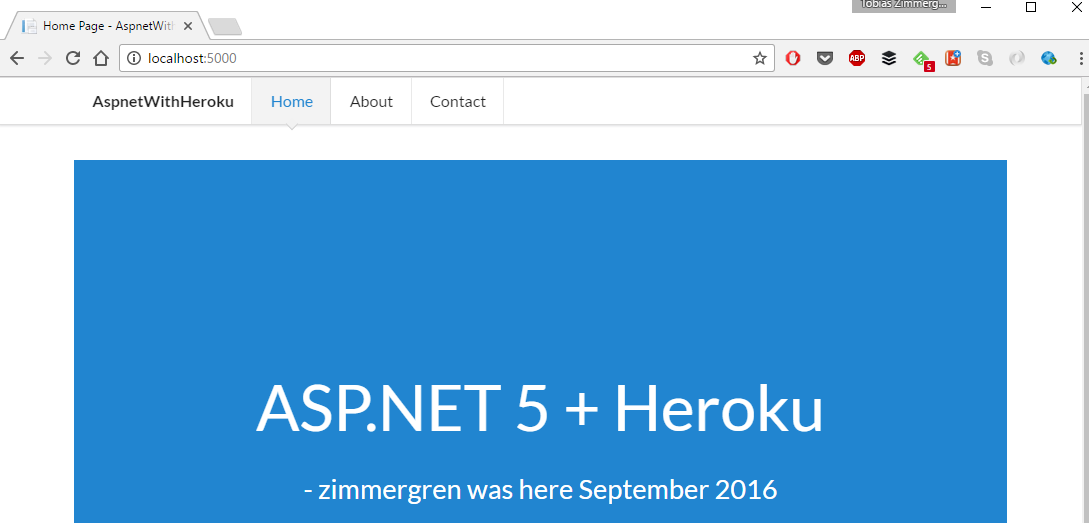

ASP.NET 5 website running locally

Great. You have a working ASP.NET 5 website (an existing one, or a newly generated one like mine here).

Restore, build and run local website

Before we even start considering pushing these things into the cloug, we should verify that they work locally.

With ASP.NET 5 this is very easy, and done like this:

First, you run:

dotnet restore

This will install all the required packages and restore them into your project.
Once this is done, we can simply make sure that the web app launches.

Next, run this:

dotnet build

This will build the project and make sure you don't have any build errors etc.

Next, run this:

dotnet run

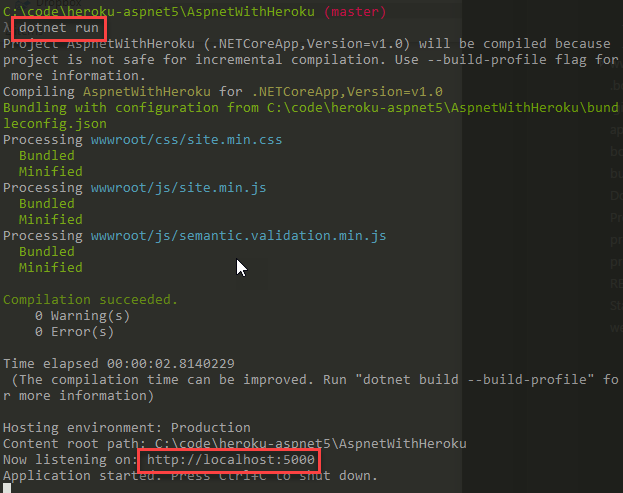

Et voila! There should be a link telling you where to find your running localhost application:

dotnet run

Launching that url in your browser, you should see your web application. Mine looks like the preview I showed you under the previous headline.

Part 3: Deploying and running your ASP.NET 5 web application in Heroku!

This is where the fun part starts. If you've reached this point, it assumes that you've got an ASP.NET 5 core application you'd want to host in Heroku.

Make sure you've got your web app in a git repo, as described in the beginning.

Before we walk through the few steps required, let's take a step back and talk slightly about Heroku and its options.

Heroku Buildpacks

Buildpacks are responsible for transforming deployed code into a slug, which can then be executed on a dyno. Buildpacks are composed of a set of scripts, and depending on the programming language, the scripts will retrieve dependencies, output generated assets or compiled code, and more. This output is assembled into a slug by the slug compiler - Heroku Dev Center

Essentially a way to tell Heroku how to run your code.

Official Buildpacks supported by Heroku

There's a handful of officially supported buildpacks (as of this writing), and they are:

As you can see, the ASP.NET build packs isn't there. That is sad. But, alas, this is where the Heroku Elements Marketplace comes to the rescue!

Unofficial Buildpacks in the Heroku Elements Marketplace

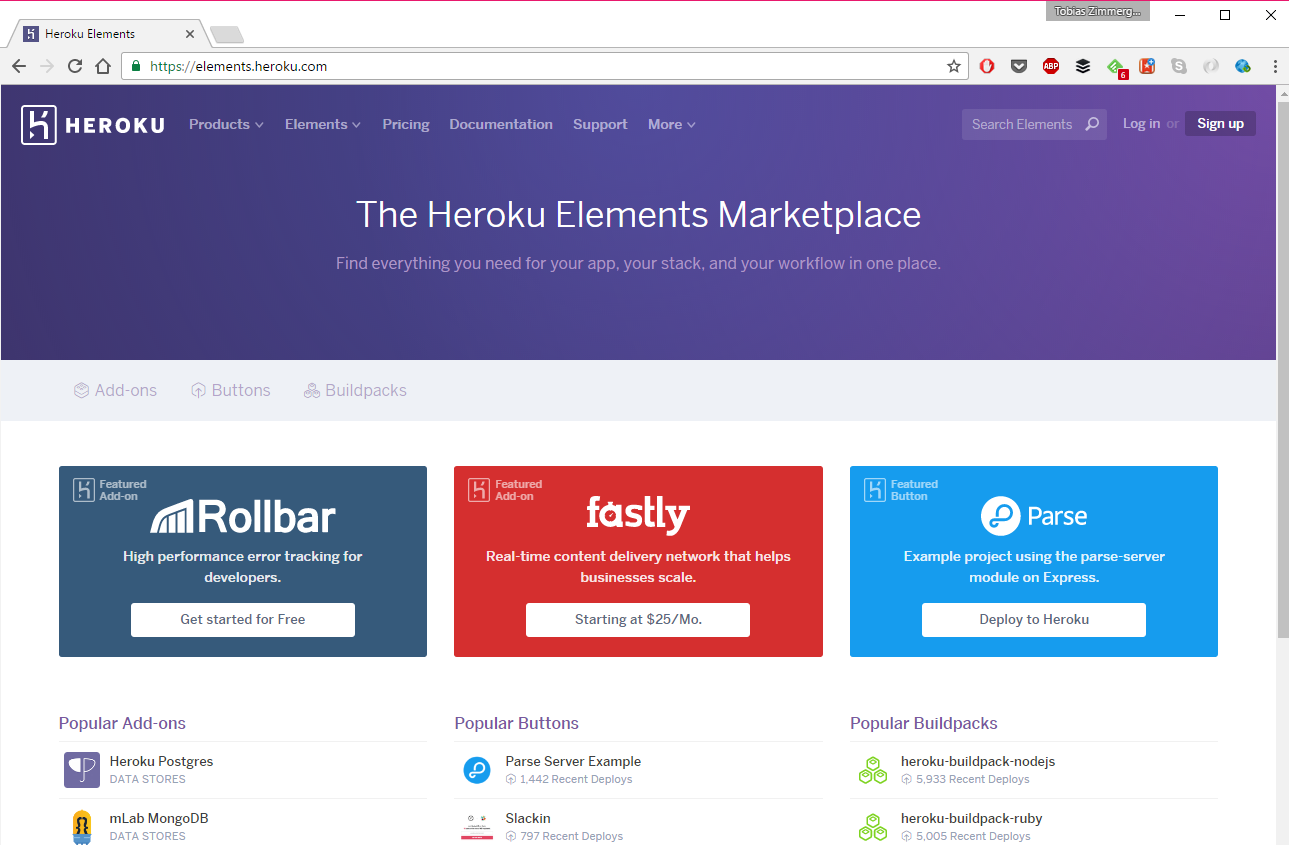

Heroku Elements Marketplace

Visiting the Heroku Elements Marketplace, I started to look what they had to offer.

There's a LOT of buildpacks available from thirdparty repos. Both good ones and bad ones, and this is why they might not be officially supported by Heroku.

It tested a few different ones, but not everyone worked - so this will be an important task for you if you choose to use something from the thirdparty offerings here. Do you research and tests, and make sure it keeps running for you!

Since our project is running ASP.NET 5 on .net core, we will search for a buildpack that might offer something like that:

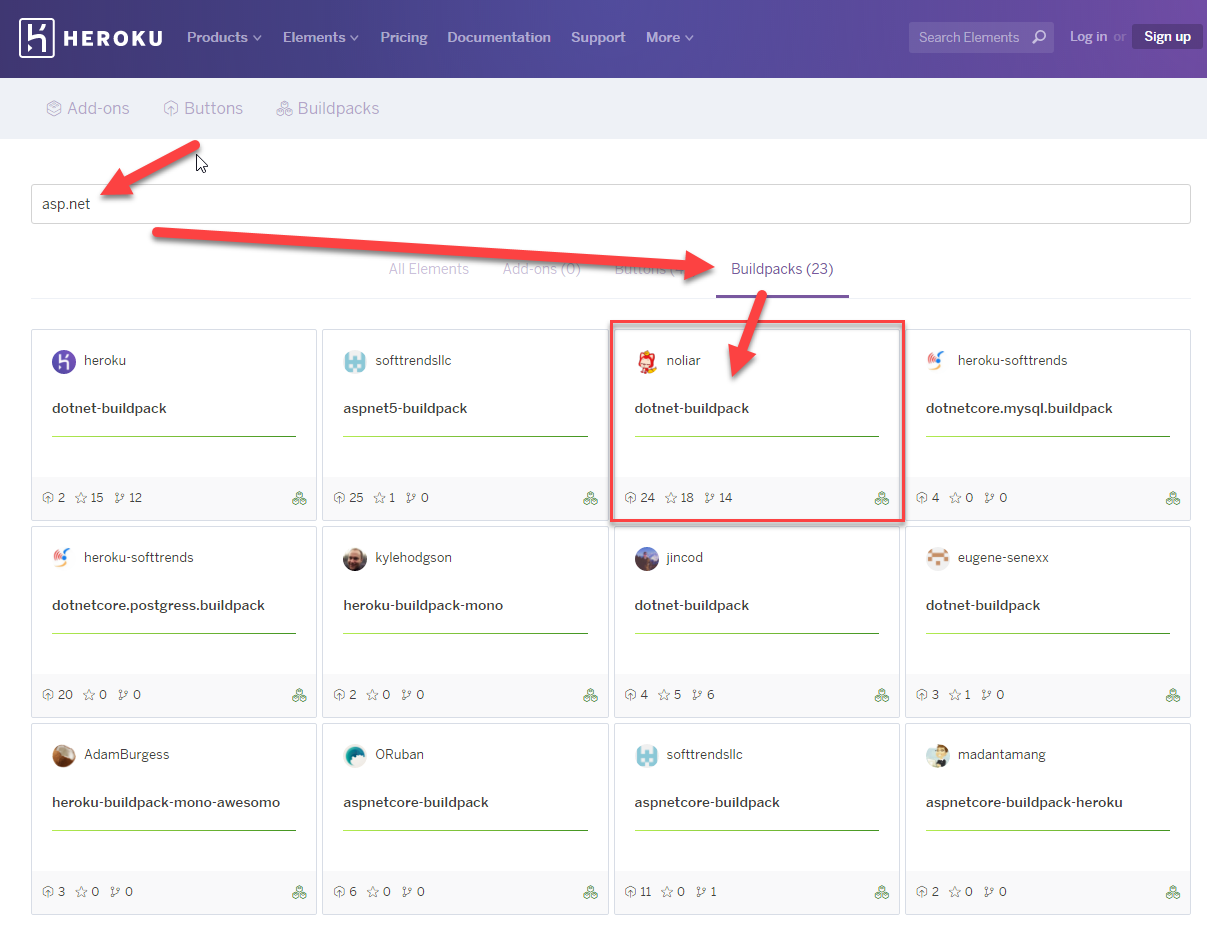

See what build packs are available on the thirdparty market

I found the one in the picture, called dotnet-buildpack from this location: https://elements.heroku.com/buildpacks/noliar/dotnet-buildpack.

I tested it, created a heroku app based on it and voila. It worked. That's what the next section is about.

Create and deploy a Heroku app based on ASP.NET 5

This part is the easy one. Once you've verified a build pack and you know what you're going to do, just do it. Here's how.

Create a Heroku app based on the dotnet core buildpack from noliar:

heroku create --buildpack http://github.com/noliar/dotnet-buildpack.git

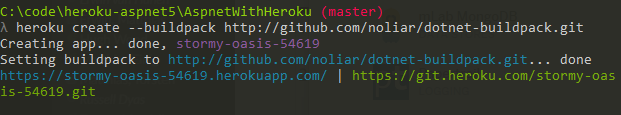

It will look something like this:
Create heroku app for asp.net 5

Commit any changes in your repository:

git add *
git commit -m "Added all my magical unicorns"

Push the repository master branch to the heroku app:

git push heroku master

Note: If you get the fatal: 'heroku' does not appear to be a git repository message at this point, here's how you resolve that:

heroku git:remote -a yourApplicationHere

The yourApplicationHere is the name of your application in Heroku, as you created previously

Set git repo

When you've pushed your master to Heroku, it will start to walk through all steps necessary to build and deploy your asp.net 5 web application in the Heroku dyno.

Once this is done, you should hopefully see a message indicating success:

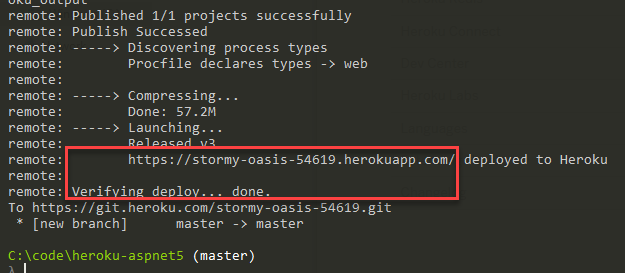

Heroku deploy success

Next up, simply run this to launch your newly published web app, now hosted in the Heroku dyno:

heroku open

That will launch your ASP.NET 5 app, now running in Heroku:

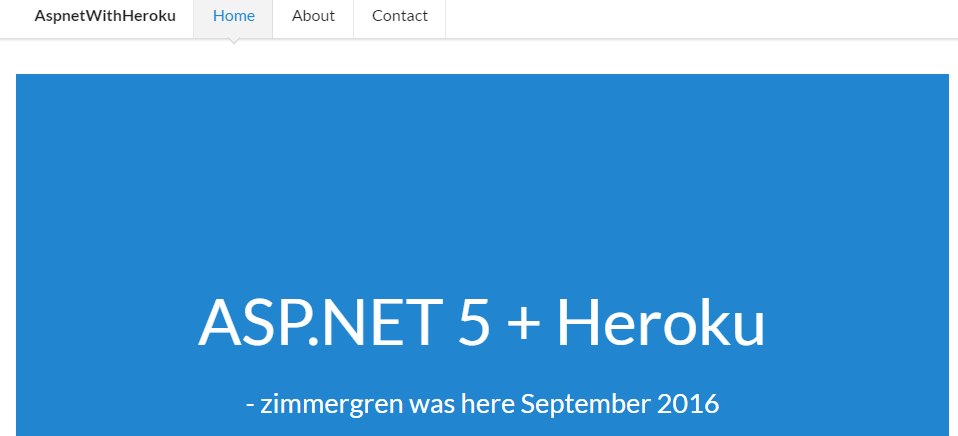

ASP.NET 5 application running in Heroku cloud dyno

Get an overview of your deployed app

With Heroku, you can visit your admin portal to see the status of your application. You can do this through the CLI too, but let's check the UI out.

This is all done through your dashboard on https://dashboard.heroku.com/apps.

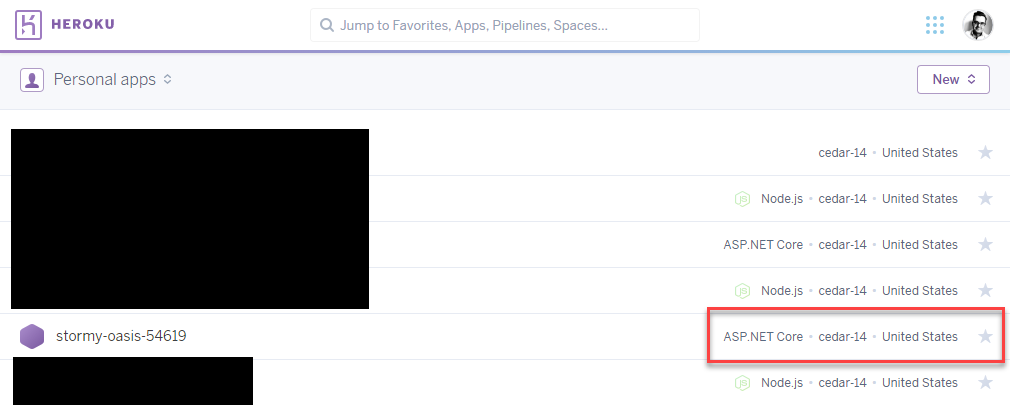

In your app overview, you will notice that the type is now ASP.NET Core:
Heroku admin overview, see your asp.net 5 app

Clicking in to your app, you can see the deployment history and make sure it's successful:

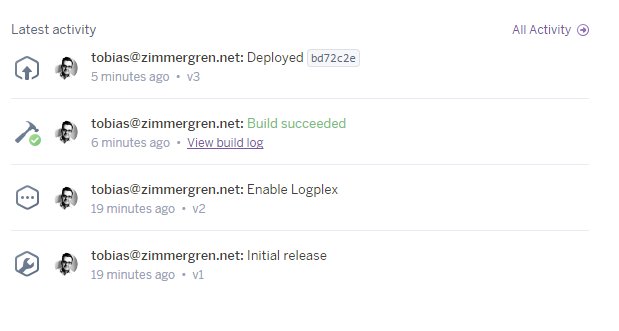

Heroku app log

Summary

In this post we've checked out how to:

  • Create a templated ASP.NET 5 website
  • Created a Heroku app with a custom buildtemplate (for dotnet core)
  • Hooked up our repository to the heroku app
  • Deployed our repository code to the Heroku cloud

The source code for the simple ASP.NET 5 website is available here: https://github.com/Zimmergren/heroku-aspnet5

Enjoy.
Tobias.
